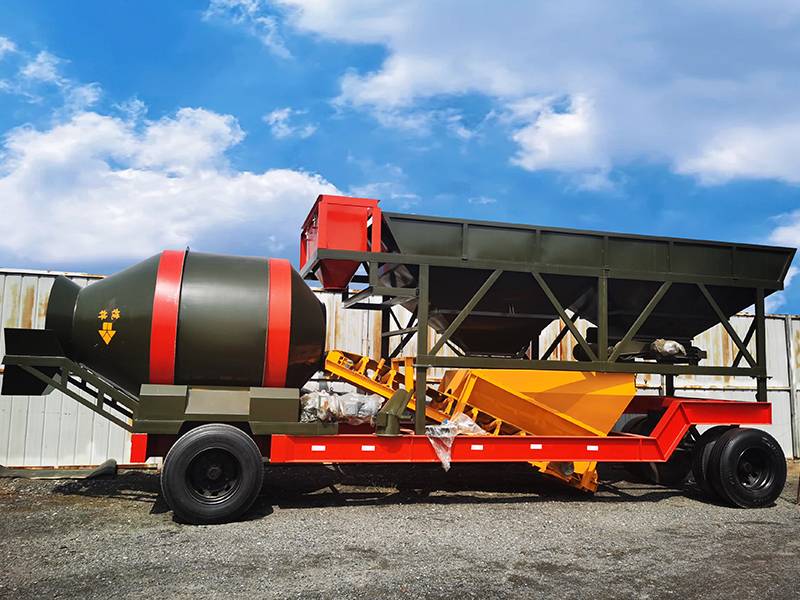

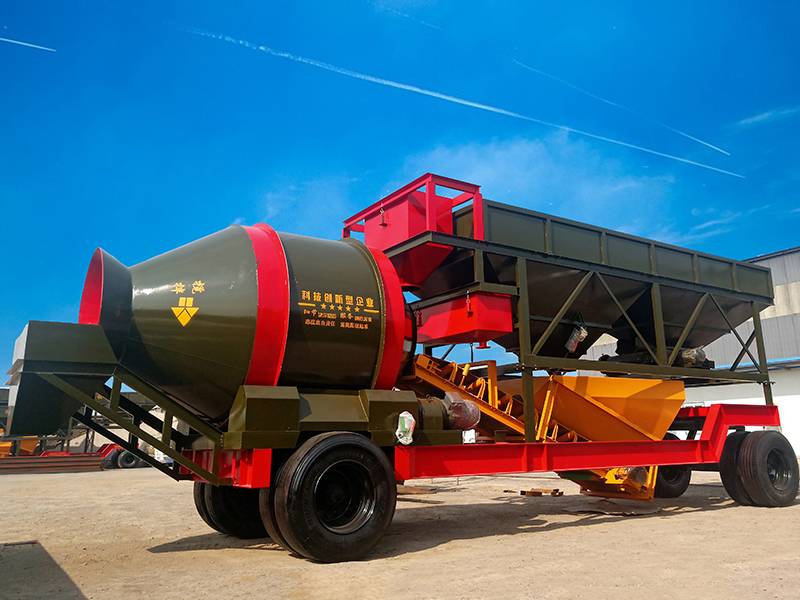

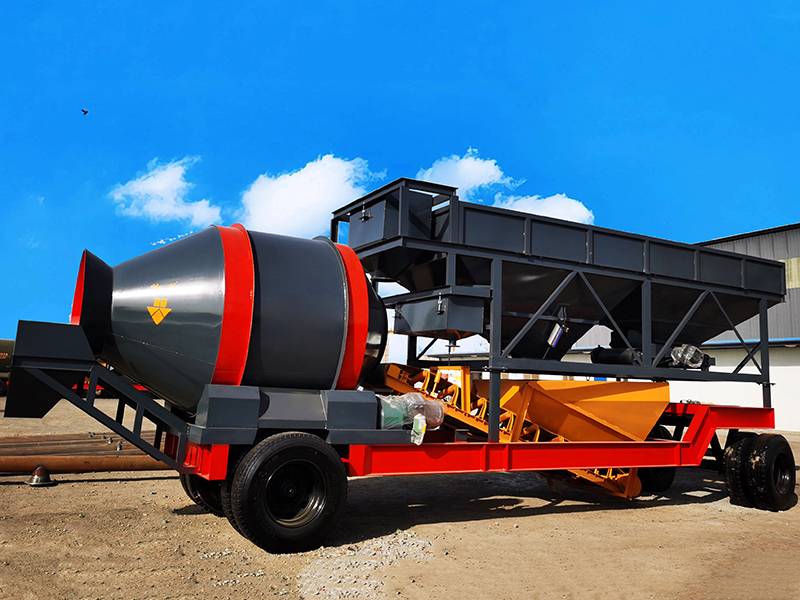

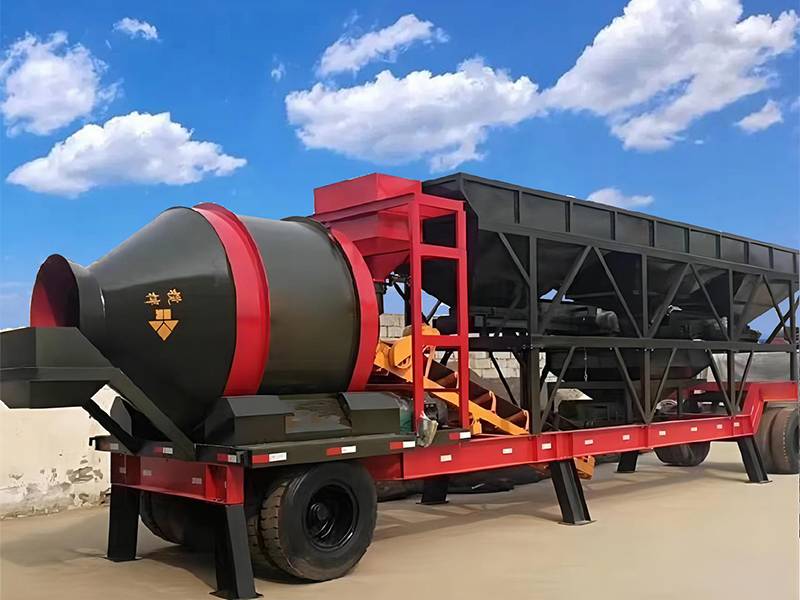

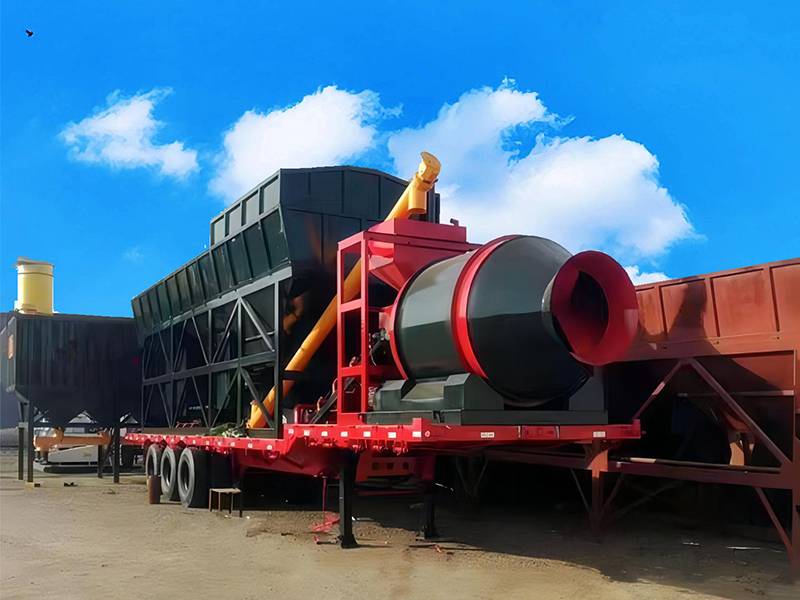

The YHZM25 mobile drum-type concrete mixing plant is equipped with a JZM500 drum concrete mixer and a PLD800 batching machine, with a theoretical productivity of 25m³/h. YHZM25 is a low-discharge type mobile batching plant that features easier installation and lower cost, making it suitable for construction projects with limited budgets.
YHZM25 mobile concrete batching plant mainly consists of the aggregate batching system, concrete mixer system, cement and powder weighing system, water and additive system, main frame and steel structure, as well as the electrical control system.
|
Whole Machine |
Model |
YHZM25 |
|
Theoretical Productivity |
25m³/h |
|
|
Discharge Height |
1.2m |
|
|
Total Power |
22.5kw |
|
|
Concrete Mixer |
Model |
JZM500 |
|
Discharge Volume |
500L |
|
|
Charging Volume |
800L |
|
|
Mixing Cycle |
60S |
|
|
Batching Machine |
Model |
PLD800 |
|
Weighing Hopper Volume |
800L |
|
|
Aggregate Bin Capacity |
3.4m³ |
|
|
No. of Storage Bins |
2/3 |
|
|
Pneumatic System |
Air Compressor |
0.36m³ |
|
Cylinder |
AKS |
|
|
Weighing System Accuracy |
Aggregate |
±2% |
|
Cement |
±1% |
|
|
Water |
±1% |
|
|
Additive |
±1% |
We offer professional pre-sales consulting support to fully understand customer needs. We optimize equipment configuration plans, provide reliable data and solutions for decision-making, and deliver customized R&D and production.
We provide complete sales solution support for customers. We carry out detailed concrete mixing plant site planning and select the most reasonable installation plan based on site conditions and project requirements.
We provide all-round after-sales support including 24h online technical support, professional operation training, telephone and remote service, on-site maintenance, as well as equipment upgrade and relocation.
We provide reliable warranty service: one-year warranty for the whole machine, two-year warranty for core components, and free replacement for some wearing parts within the warranty period.
Housing and construction projects
Mainly include residences, office buildings, shopping malls and factories. They are mostly located in urban or suburban areas with relatively compact sites and tight construction schedules. High requirements are placed on concrete workability and pouring performance to meet the structural needs of different strength grades.
Municipal roads, squares and pipeline networks
These projects are mostly constructed in urban areas with heavy traffic interference. Construction is usually carried out in sections and at a fast pace. Concrete is required to have early strength, wear resistance and crack resistance to resume traffic quickly and ensure long-term stability.
Highway projects
They have long routes and large spans, mostly constructed in field environments with complex climate and geological conditions and long transportation distances. Concrete is required to have good stability, fatigue resistance, freeze-thaw resistance and impermeability for large-area continuous construction and long-term heavy load use.
Bridge projects
These projects are mostly over water, at high altitudes or crossing traffic lines, significantly affected by wind, temperature difference, water flow and heavy loads. Construction conditions are complex. Concrete is required to be high-strength, high-flowability, corrosion-resistant and chloride-ion penetration resistant.
